| TECHNICAL SPECIFICATIONS | UNIT | MEASURED VALUES |
|---|---|---|
| Standard | - | EN 16510 |
| Energy Class | - | A+ |
| Capacity - Nominal heat output - Wood - Briquette - Coal | kW | 23 - 24 - 34.5 |
| Capacity - Water heating power - Wood - Briquette - Coal | kW | 18 - 18 - 27 |
| Capacity - Space heating power - Wood - Briquette - Coal | kW | 5 - 6 - 7.5 |
| Efficiency - Nominal heat output | % | 84.9 |
| Fuel type | - | Wood - Briquette - Coal |
| Loading type | - | Manual |
| Fuel loading area | - | Top and Front Loading | Primary combustion air control | - | Semi-automatic | Secondary combustion air control | - | Manual |
| Permissible operating temperature - Maximum | °C | 83 |
| Permissible operating temperature - Minimum | °C | 40 |
| Maximum permissible operating pressure | bar | 2 |
| Test pressure | bar | 4 |
| Boiler water volume | It | 39 |
| Minimum chimney draught | Pa | 18 |
| Dimensions (Width X Depth X Height) Product | mm | 1158X924X733 |
| Dimensions (Width X Depth X Height) - Product (Packaged) | mm | 1200X780X1040 |
| Dimensions (Width X Depth X Height) - Oven | mm | 367 x 495 x 260 |
| Connections - Water flow - return connection | inc | 1 |
| Connections - Chimney connection (inner diameter) | mm | Ø 150 |
| Electricity consumption (average) | W | 45 |
| Electrical connection | Vac/Hz | 230 / 50 |
| CO emission according to 13% O2 - Nominal heat output | mg/Nm3 | 1477 |
| Flue gas temperature - Nominal heat output | °C | 298.63 |
| Weight - Product | kg | 296 |
| Weight - Product (Packaged) | kg | 321 |

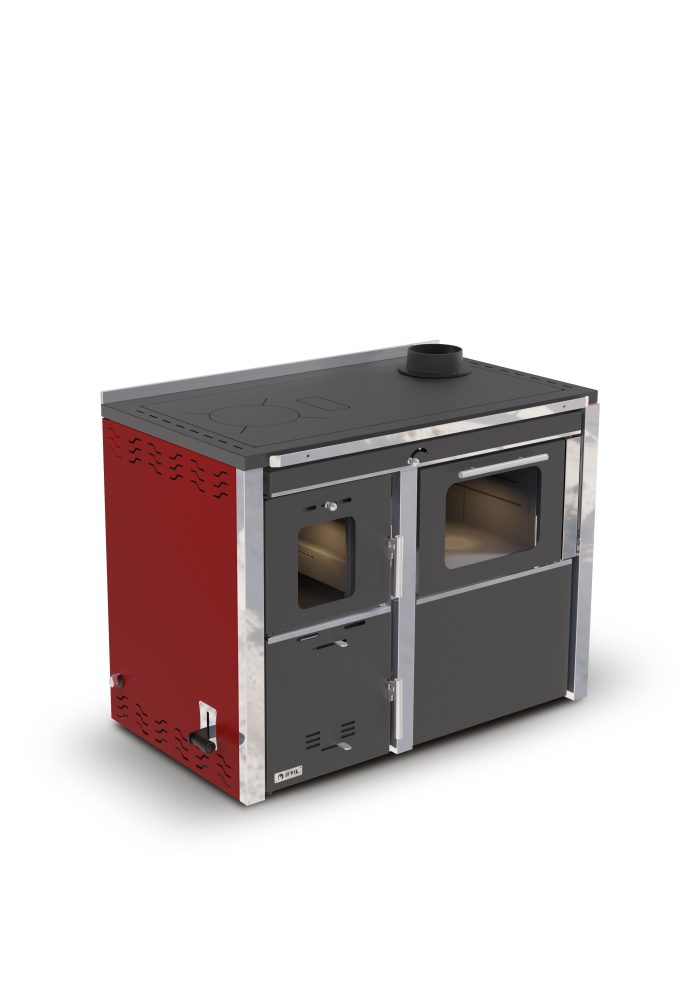

STAR PLUS
SOLID FUEL HEATER PRODUCT
• Package system • Possibility of cooking in the oven section • Possibility of cooking on the top table • Tilting grill cleaning system • Possibility of fireplace view • Ability to burn wood, coal and briquettes • Safety valve safety device • Semi-automatic combustion air control • Manual secondary combustion air control
